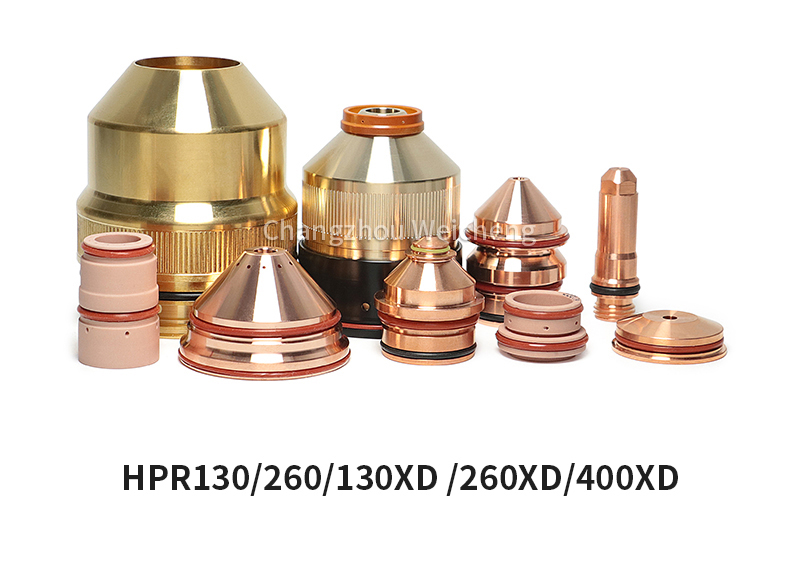

HPR130 240 400 Torch Plasma Electrode 220181 220187 Nozzle 220182 220188 Shield 220183 220189

System description

General HyPerformance plasma systems are designed to cut a wide range of thicknesses of mild steel, stainless steel and aluminum.

Power supply

The power supply is a 260-amp, 150-VDC constant-current supply. It contains the circuitry to ignite a torch, a heat exchanger and pump to cool the torch. The power supply has a serial interface to provide communication with a CNC controller.

Ignition console

The ignition console uses a spark-gap assembly. The ignition console converts 120 VAC control voltage from the power supply into high-frequency and high-voltage pulses (9-10 kV) to break over the torch electrode-nozzle gap. The highvoltage, high-frequency signal is coupled to the cathode lead and pilot arc lead.

Selection console

The selection console manages the selection and mixing of the plasma gases. It contains motor valves, solenoid valves and pressure transducers. It also contains a PC control board, an AC relay board and a power distribution board. The selection console has an LED lamp that illuminates when power is supplied to the system.

Metering console

The metering console may be located up to 1.8 m (6 ft) away from the torch and controls the flow rate of the gases to the torch in real time. It also controls the gas portion of the LongLife® process. The metering console contains proportional control valves, a PC control board and a power distribution board.

Torch

The virtually dross-free cutting capacity of the torch is 32 mm (1.25 in) for HyDefinition cutting. The production pierce capacity is 32 mm (1.25 in) for mild steel and stainless steel and 25 mm (1 in) for aluminum. The maximum cutting capability (edge start) is 64 mm (2.5 in) for mild steel and stainless steel and 50 mm (2 in) for aluminum.

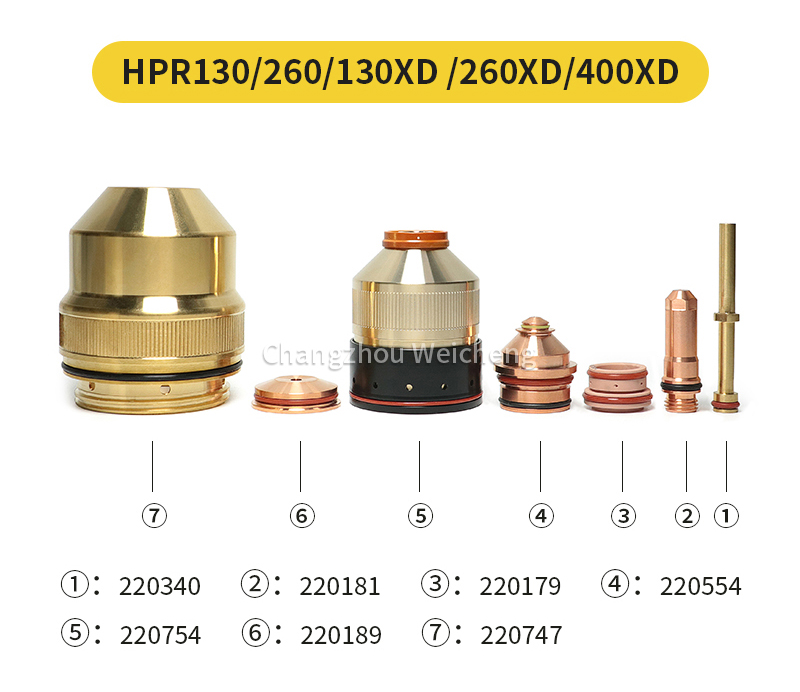

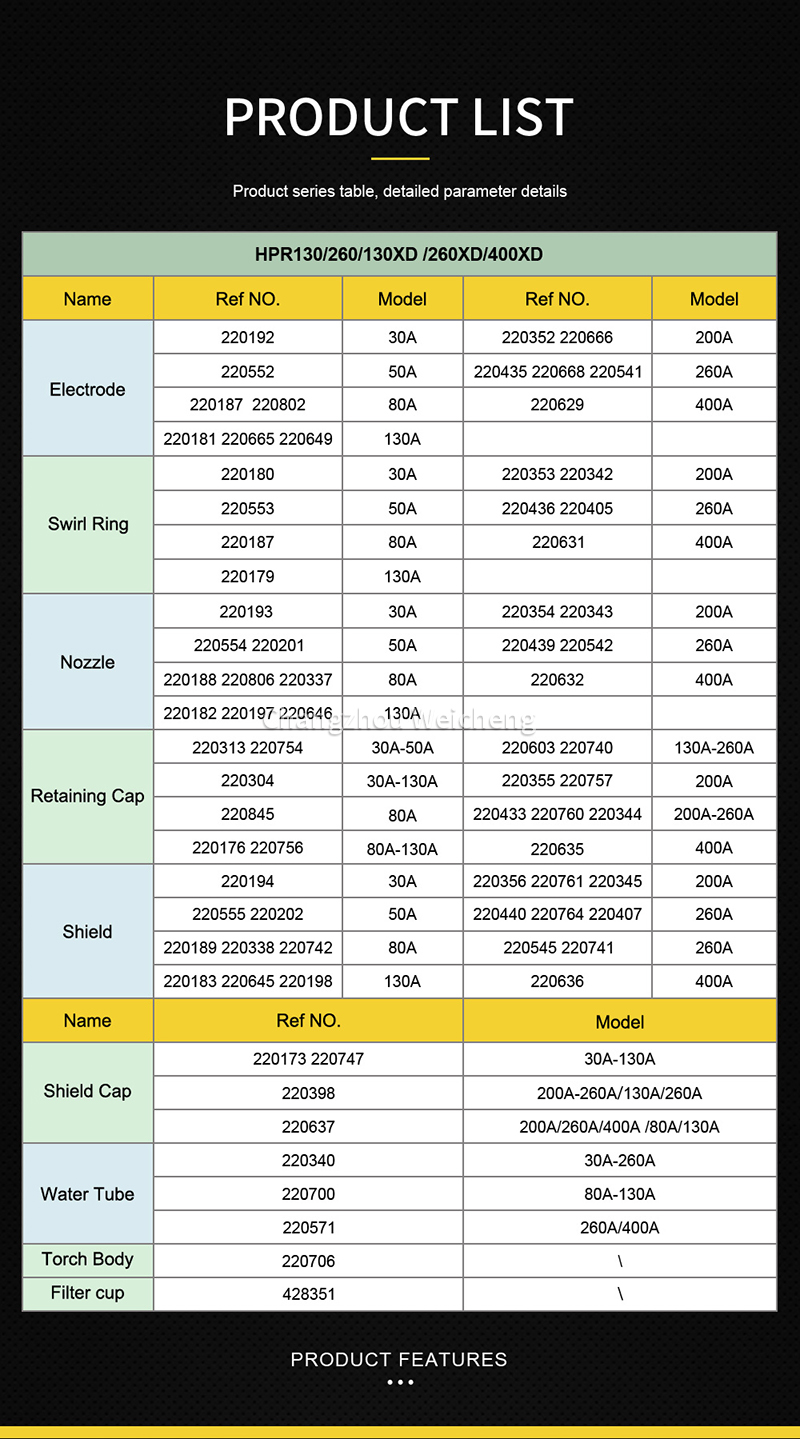

Water Tube 220340

Water Tube 220571

Electrode 220192

Electrode 220552

Electrode 220187

Electrode 220181

Electrode 220352

Electrode 220235

Electrode 220435

Electrode 220629

Swirl Ring 220180

Swirl Ring 220553

Swirl Ring 220179

Swirl Ring 220353

Swirl Ring 220436

Swirl Ring 220631

Nozzle 220193

Nozzle 220554

Nozzle 220188

Nozzle 220182

Nozzle 220354

Nozzle 220439

Nozzle 220632

Retaining Cap 220754

Retaining Cap 220756

Retaining Cap 220757

Retaining Cap 220760

Retaining Cap 220635

Shield 220194

Shield 220555

Shield 220189

Shield 220183

Shield 220761

Shield 220764

Shield 220636

Retaining Cap 220747

Retaining Cap 220637

Torch Body 420087

Torch Body 220961

HPR130 240 400 Torch Plasma Electrode 220181 220187 Nozzle 220182 220188 Shield 220183 220189
