Dismounting of used consumables
1.Unscrew the protection cap (0x.06). (if necessary screw off the spatter protection (0x.07) and the swirl
gas cap (0x.08) from the protection cap (0x.06).)
2.Pull off the nozzle (0x.05) manually or press out of protection cap (0x.06).
3.Pull off the gas guide (0x.04) and the insulating element (0x.03) manually.
4.Unscrew the cathode (0x.02), with multiple wrench SW10 (which is part of the consumable kit).
5.Remove the cooling tube (0x.01) (if necessary).
Mounting of new consumables
1. Screw in the cooling tube (0x.01).
2. Screw in the cathode (0x.02).
3. Insert the insulating element (0x.03) and the gas guide (0x.04).
4. Insert the nozzle (0x.05) or insert into protection cap (0x.06).
5. Screw on the protection cap (0x.06). (Screw on the spatter protection(0x.07) with the swirl gas cap (0x.08).)
For the connection of the plasma torch and the change of consumables the safety wrench and the multiple
wrench are supplied along with the consumable kit. For mounting the plasma torch to the guiding machine
the Torch holder (article no.: 11.822.572) is required
Used or damaged consumables shall be replaced in due time (Reference: visible change of the cutting
quality).
The life time of the cathode depends on the cutting time, the number of ignitions and the cutting current. @ @ 1
The life time of the nozzle mainly depends on the cutting time, the number of ignitions and the handling of
the torch (performance of hole piercing, upcoming spatter, etc.).
Be sure that the consumables are suitable for the intended cutting procedure.
The consumables shall be replaced with great care and only with the mounting aids which are part of the delivery.

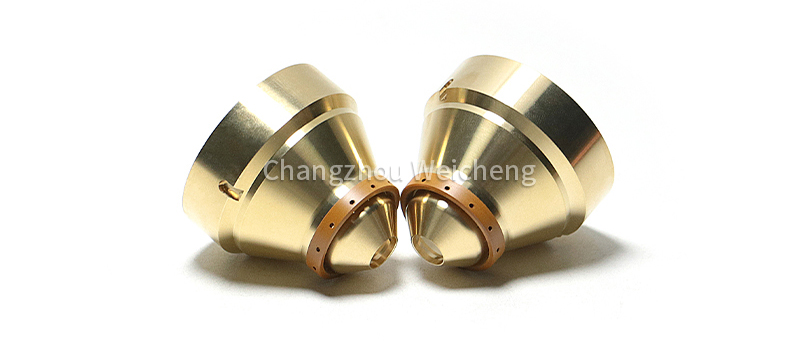

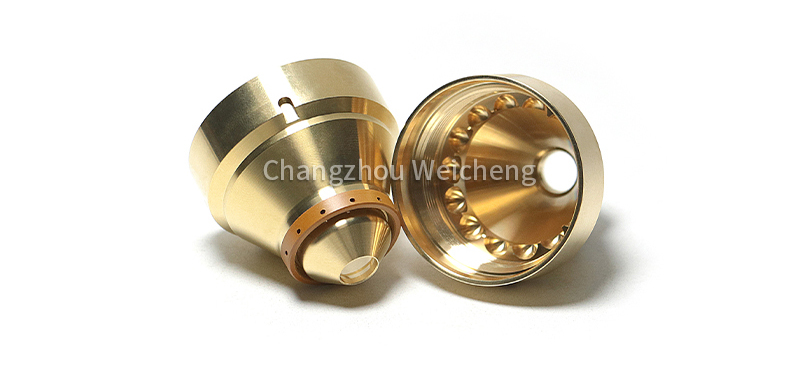

Plasma Cutting Consumable F3028 Nozzle Cap.11.855.401.1628 For Kjellberg Torch
