F921
kjellberg
1.Unscrew the change head from the torch shaft for change of consumables.
2.Place change head to the parking station (1). Pay attention to the correct position!
The radial pin (2) of the change head must engage in the retaining bracket (3).
3.Connect at the terminal piece of the ball valve (4) a hose for compressed air.
4.Connect a hose to the drain pipe (5) for discharging the coolant-air mixture and bring this to a collection.
5.Open the ball valve (4) complete, for blowing out the coolant with the aid of compressed air.
6.Close the ball valve (4) again.
7.Perform the change of consumables with the supplied standard tools (6) according to the instruction
manual (see chapter "Consumables and their exchange").
8.After completion of consumable change removing the replaceable head by pressing down the retaining
bracket (3) of the parking station and pull out the change head straight up.
9.Connect the change head to the torch shaft
1.Thread the change head into torch shaft, adjust each of the three locking screws on the long groove of the locking sleeve.
2.Right hand rotation of sealing sleeve, until it stops in interlock position, supportingly push the torch head against torch shaft in the same time.

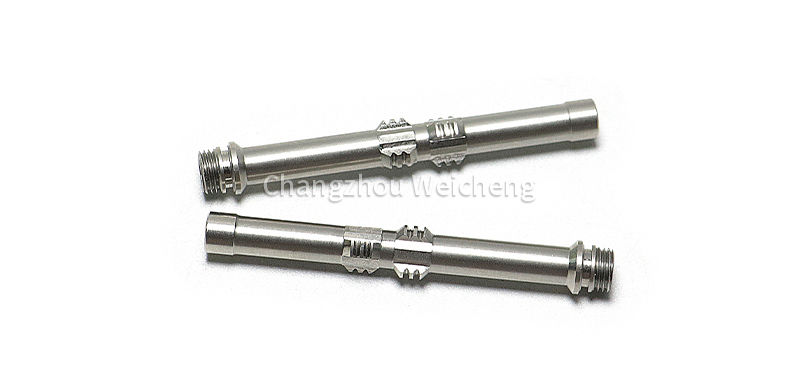

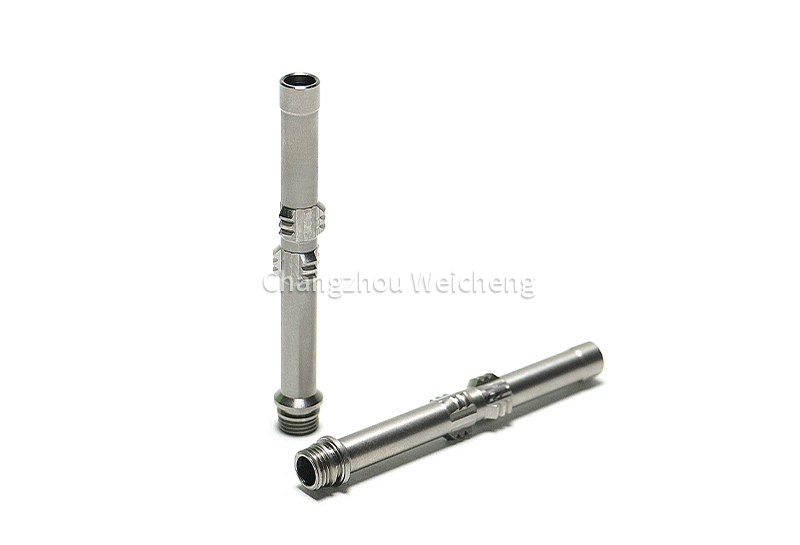

Plasma Cutting Consumable F921 Water Tube .11.855.401.142 For Kjellberg Torch
1.Unscrew the change head from the torch shaft for change of consumables.
2.Place change head to the parking station (1). Pay attention to the correct position!
The radial pin (2) of the change head must engage in the retaining bracket (3).
3.Connect at the terminal piece of the ball valve (4) a hose for compressed air.
4.Connect a hose to the drain pipe (5) for discharging the coolant-air mixture and bring this to a collection.
5.Open the ball valve (4) complete, for blowing out the coolant with the aid of compressed air.
6.Close the ball valve (4) again.
7.Perform the change of consumables with the supplied standard tools (6) according to the instruction
manual (see chapter "Consumables and their exchange").
8.After completion of consumable change removing the replaceable head by pressing down the retaining
bracket (3) of the parking station and pull out the change head straight up.
9.Connect the change head to the torch shaft
1.Thread the change head into torch shaft, adjust each of the three locking screws on the long groove of the locking sleeve.
2.Right hand rotation of sealing sleeve, until it stops in interlock position, supportingly push the torch head against torch shaft in the same time.
Plasma Cutting Consumable F921 Water Tube .11.855.401.142 For Kjellberg Torch
