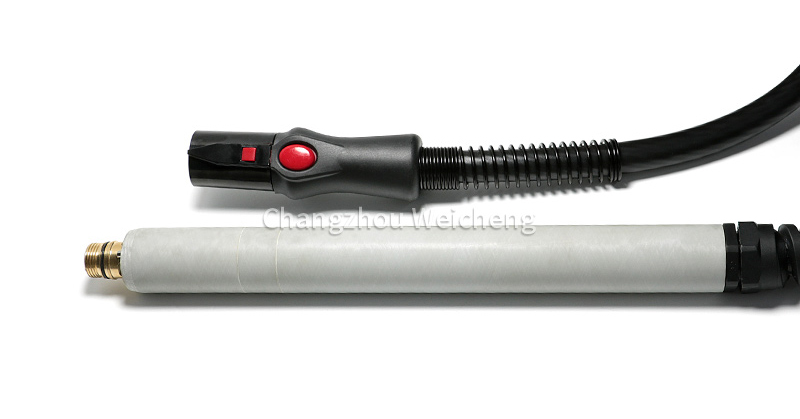

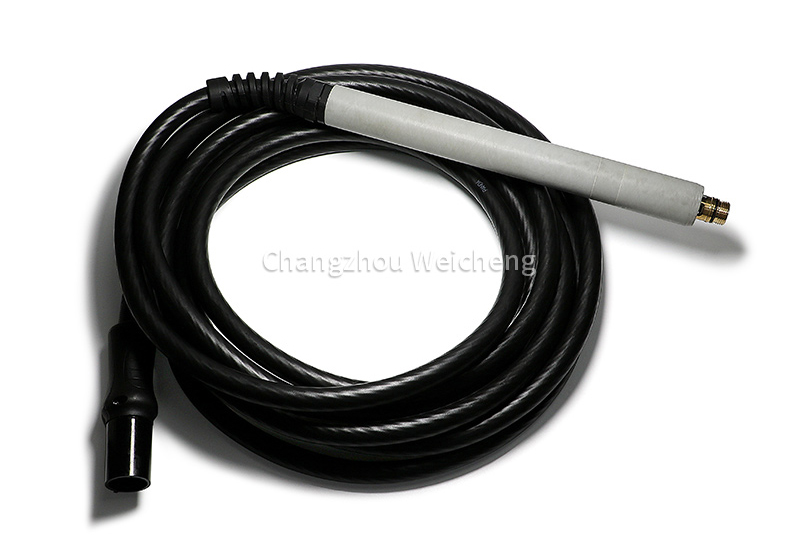

Plasma Cutting Machine Torch 059477 Standard 7.6m Fit Powermax105

Depending on the type of cutting table you have, you may or may not need to disassemble the torch to route it through

the track and mount it. If your cutting table’s track is large enough for you to thread the torch through it without removing

the torch body from the lead, do so and then attach the torch to the lifter per the manufacturer’s instructions.

Note: The Duramax machine torches can be mounted on a wide variety of X-Y tables, track burners, pipe bevelers,

and other equipment. Install the torch per the manufacturer’s instructions and follow the instructions below

for disassembly if necessary.

If you need to disassemble and reassemble the torch, refer to the figures on page 6-4 Machine torch components and

follow these instructions.

Note: While disconnecting and reconnecting the torch parts, maintain the same orientation between the torch

head and torch lead. Twisting the torch head in relation to the torch lead can cause damage.

228730 Kit: Powermax65/85/105 180° full-length/mini machine torch lead replacement, 4.6 m (15 ft)

228731 Kit: Powermax65/85/105 180° full-length/mini machine torch lead replacement, 7.6 m (25 ft)

228732 Kit: Powermax65/85/105 180° full-length/mini machine torch lead replacement, 10.7 m (35 ft)

228733 Kit: Powermax65/85/105 180° full-length/mini machine torch lead replacement, 15 m (50 ft)

228734 Kit: Powermax65/85/105 180° full-length/mini machine torch lead replacement, 23 m (75 ft)

Plasma Cutting Machine Torch 059477 Standard 7.6m Fit Powermax105
