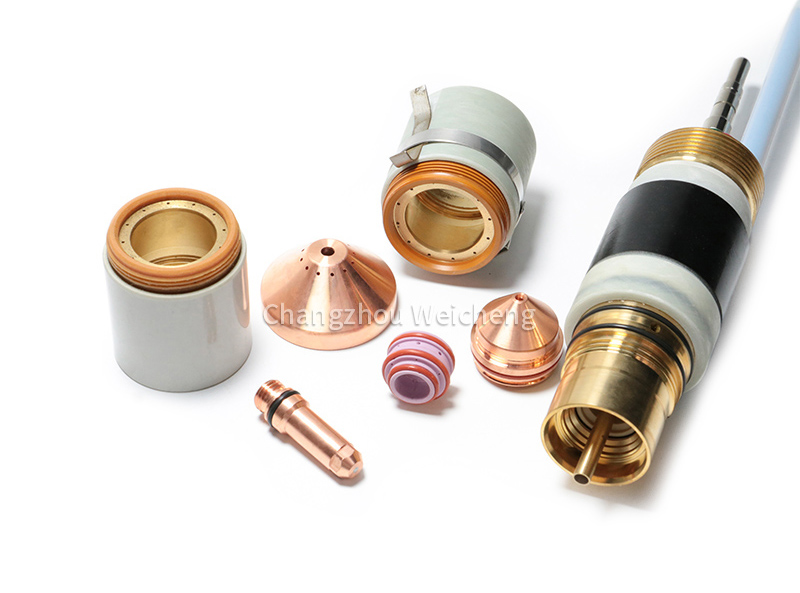

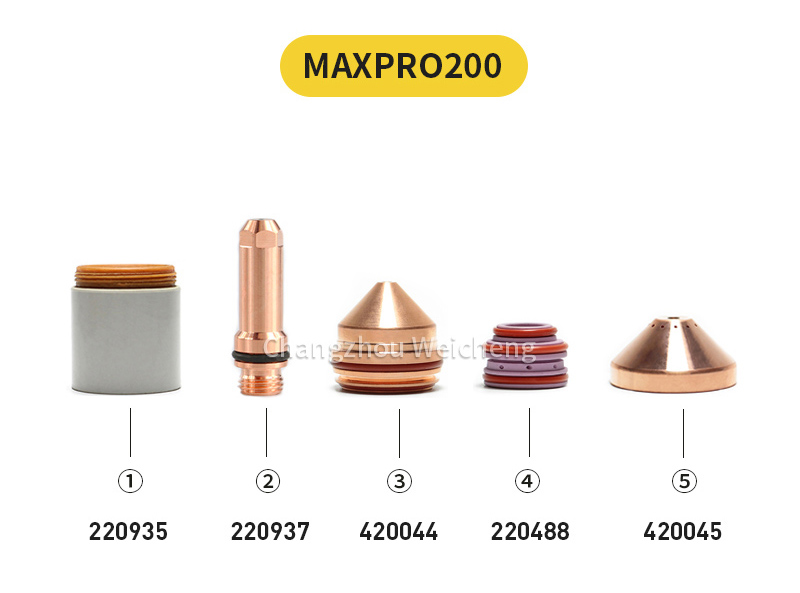

Plasma Torch ConsumablesElectrode 220487 220528 Nozzle 220831 220890 Shield 220532 220536 For Maxpro200

System description

General

The MAXPRO200 plasma system is designed to cut a wide range of thicknesses of mild steel, stainless steel, and

aluminum.

Power supply

The power supply is a 200 A, 165 VDC constant-current supply. It contains the circuitry to ignite a torch, plus a heat

exchanger and a pump to cool the chopper and torch. The power supply has a discrete machine interface to provide

communication with a CNC.

Ignition console

The ignition console is attached to the outside of the rear panel of the power supply enclosure. The ignition console uses

a spark-gap assembly. The ignition console converts 120 VAC control voltage from the power supply into high-frequency

and high-voltage pulses (9–10 kV) to initiate the pilot arc at the torch electrode-nozzle gap. The high-voltage,

high-frequency signal is coupled to the pilot arc lead.

Torch

•

The maximum production cutting capacity is the maximum thickness that can be cut with a 100% duty

cycle. The maximum production cutting capacity of the MAXPRO200 torch is 32 mm (1-1/4 inches)

for mild steel using the 200 amp O2/Air process, 22 mm (7/8 inch) for stainless steel, and 19 mm (5/8 inch) for aluminum using the 200 amp Air/Air process.

•

Maximum pierce capacity is 32 mm (1.25 inches) for mild steel, 25 mm (1 inch) for stainless steel, and

32 mm (1.25 inch) for aluminum.

•

The maximum severance capacity is the maximum thickness that can be severed without regard for

speed and cut quality. This thickness should only be cut occasionally and cannot be cut with a 100%

duty cycle. The maximum severance capacity of the MAXPRO200 torch is 75 mm (3 inches) for mild

steel, 63 mm (2-1/2 inches) for stainless steel, and 75 mm (3 inches) for aluminum.
