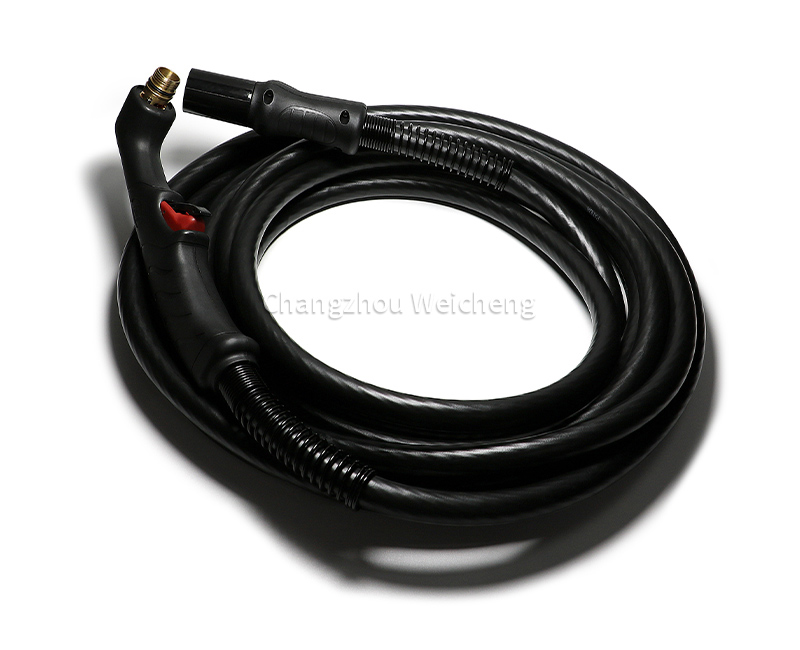

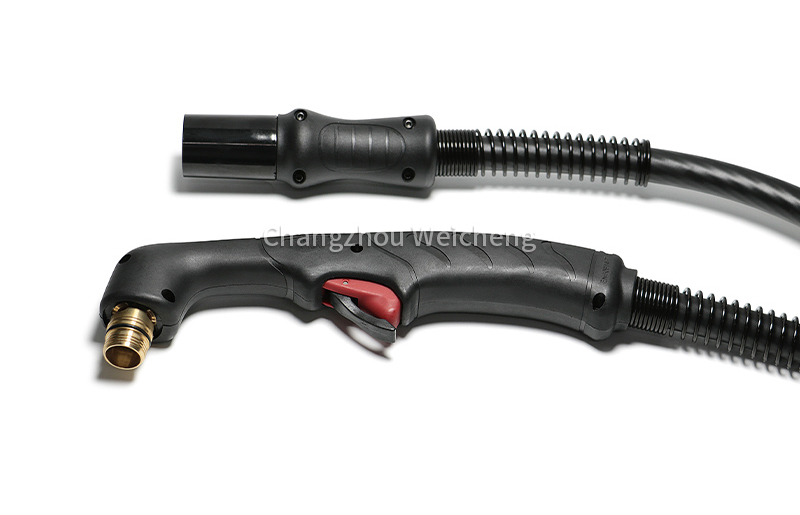

Powermax105 Handheld Torch 059473 Assembly With Cable 7.6m

Hand torches use shielded consumables. Therefore, you can drag the torch tip along the metal.

Consumables for hand cutting are shown in the next section. Notice that the retaining cap and electrode are the same

for cutting, gouging, and FineCut® applications. Only the shield, nozzle, and swirl ring are different.

For the best cut quality on thin materials (approximately 4mm/10GA or less), you may prefer to use FineCut

consumables, or use a 45 A nozzle and reduce the amperage to that setting.

These 2 sets of gouging consumables can be used for both hand cutting and machine cutting:

• Maximum Removal gouging – For aggressive metal removal, deep gouge profiles, and extreme metal washing.

• Maximum Control gouging – For more precise metal removal, shallower gouge profiles, and light metal washing.

To cut or gouge in hard to access or confined spaces, use HyAccessTM consumables. These 65 A consumables extend

the reach of the general-purpose (standard) consumables by approximately 7.5 cm (3 inches). You can expect to

achieve approximately the same cut thicknesses and cut quality as with the general-purpose consumables at 65 A.

Two HyAccess nozzles are available:

• One standard nozzle designed for a broad range of cutting applications

• One gouging nozzle designed specifically for gouging

When the tip of either nozzle wears out, replace the entire nozzle

059473* Powermax65/85/105 75° hand torch assembly with 7.6 m (25 ft) lead

059474* Powermax65/85/105 75° hand torch assembly with 15 m (50 ft) lead

059475* Powermax65/85/105 75° hand torch assembly with 23 m (75 ft) lead
